Antares 127/820mm f6.5, 152/990mm f6.5 and
127/1200 f9.4 Wide Field Refractors

These achromatic refractors have 5" and 6" well corrected, multi coated, air spaced
doublet objectives and 2" compression ring rack and pinion focusers to provide large,
bright views. Crayford focuser upgrades available. Great for extended objects and
large fields, with very reasonable false color compared to other large diameter,
short focal length achromats. The Perseus double cluster fits easily in the field of the
f6.5 scopes with a 31mm eyepiece, and the 1200mm f9.4 refractor is good for planetary
viewing.

Both scopes include 8x50 straight finder and stalk, OTA clamshell rings with dovetail
bar for EQx/CGx mounts, and front dust cover. OTA configurations do not include
diagonal, eyepieces or telescope mount.

#TRA1208EQ5, TRA12012EQ5 and TRA1529EQ5 have all of the above, and include
the EQ5 mount which has tubular steel telescoping legs, illuminated polar finder,
and stiffener/tray. A dual axis motor drive is also available.


Click on images to enlarge

$000.00 - #TRA1529 - No Longer Available - Antares 152/990mm f6.5 Refractor OTA with 8x50 Straight Finder and Rings

$000.00 - #TRA1529C - No Longer Available - Crayford Focuser Upgrade for 152/990mm f6.5 Refractor

$000.00 - #TRA1529M - No Longer Available - 10:1 Microadjustable Crayford Focuser Upgrade for 152/990mm f6.5 Refractor

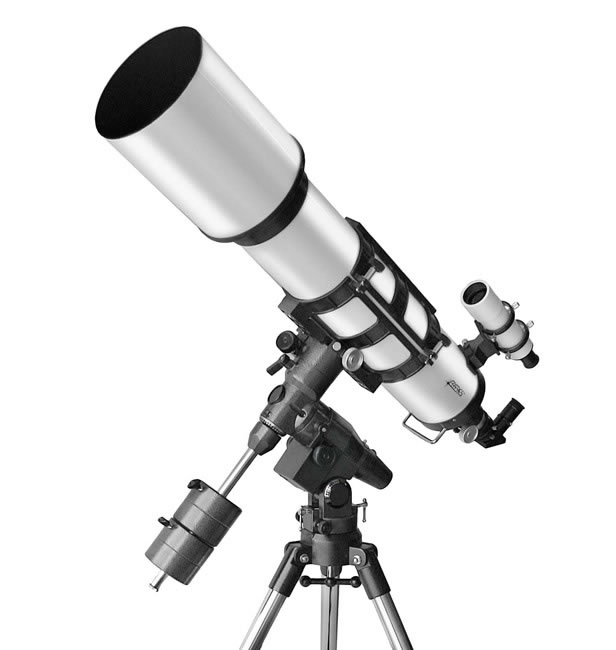

$000.00 - #TRA1529EQ5 - No Longer Available - Antares 152/990mm f6.5 Refractor with EQ5 Mount

$000.00 - #TRA1208 - No Longer Available - Antares 127/820mm f6.5 Refractor OTA with 8x50 Straight Finder and Rings

$000.00 - #TRA1208C - No Longer Available - Crayford Focuser Upgrade for 127/820mm f6.5 Refractor

$000.00 - #TRA1208M - No Longer Available - 10:1 Microadjustable Crayford Focuser Upgrade for 127/820mm f6.5 Refractor

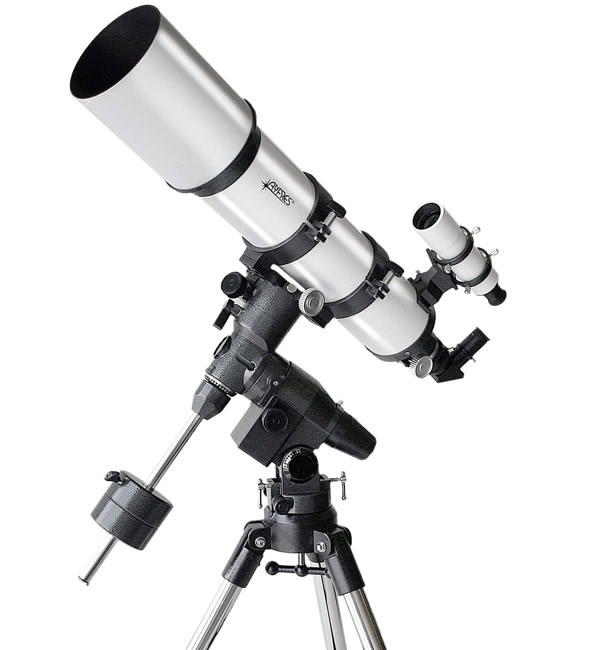

$000.00 - #TRA1208EQ5 - No Longer Available - Antares 127/820mm f6.5 Refractor with EQ5 Mount

$000.00 - #TRA12012 - No Longer Available - Antares 127/1200mm f9.4 Refractor OTA with 8x50 Straight Finder and Rings

$000.00 - #TRA12012C - No Longer Available - Crayford Focuser Upgrade for 127/1200mm f9.4 Refractor

$000.00 - #TRA12012M - No Longer Available - 10:1 Microadjustable Crayford Focuser Upgrade for 127/1200mm f9.4 Refractor

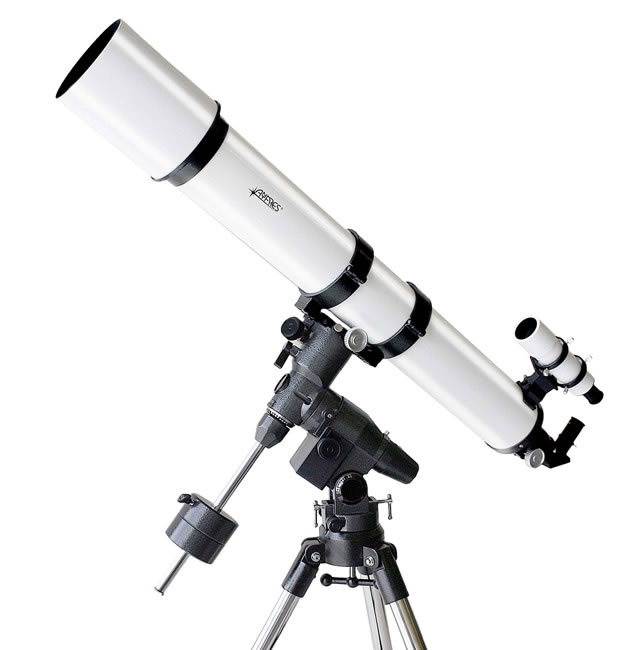

$000.00 - #TRA12012EQ5 - No Longer Available - Antares 127/1200mm f9.4 Refractor with EQ5 Mount

$169.00 - #DMD5 - Dual Axis Motor Drive for EQ5 GEM, with Hand Controller and Battery Pack

$159.00 - #DDA2 - Refractor Type 2" 98% Reflectivity Dielectric Diagonal with 1.25" adapter

Prices include UPS shipping in the USA!

Ordering Information

#TRA1208 Specifications:
Objective diameter: 127mm
Folcal Length: 820mm
Overall Length: 33.75"
Dew Shield Length: 7.875"
Dew Shield Diameter: 6.25"
R&P Focuser Travel: 5.7"
Crayford Focuser Travel: 3.2"
Tube Diameter: 5"
OTA Weight: 13 lbs
Primary Cell: Plastic Cell, Threaded Retaining Ring, Not Adjustable

#TRA12012 Specifications:
Objective diameter: 127mm
Folcal Length: 1200mm
Overall Length:
Dew Shield Length: 7.875"
Dew Shield Diameter: 6.25"
R&P Focuser Travel: 5.7"
Crayford Focuser Travel: 3.2"
Tube Diameter: 5"
OTA Weight:
Primary Cell: Plastic Cell, Threaded Retaining Ring, Not Adjustable

#TRA1529 Specifications:
Objective diameter: 152mm
Folcal Length: 990mm
Overall Length: 43"
Dew Shield Length: 9.75"
Dew Shield Diameter: 8.125"
R&P Focuser Travel: 5.5"
Crayford Focuser Travel: 3.2"
Tube Diameter: 6"
OTA Weight: 20 lbs
Primary Cell: Aluminum and Plastic Cell, Push-Pull Adjustable
