Ring Stacking Rail Kits with Hardware
Need to mount a set of rings on top of another set of rings? These
kits have all of the necessary stuff to allow the top rings to have
different spacing than the bottom rings, and everything is adjustable
to aid in balancing.
If your main scope rings have 1/4-20 threaded holes in the top then
our double sided rail mounts there. (If your rings don't have top holes
you can drill and countersink them.) Most imported rings have the
threaded holes on top for camera mounting studs.

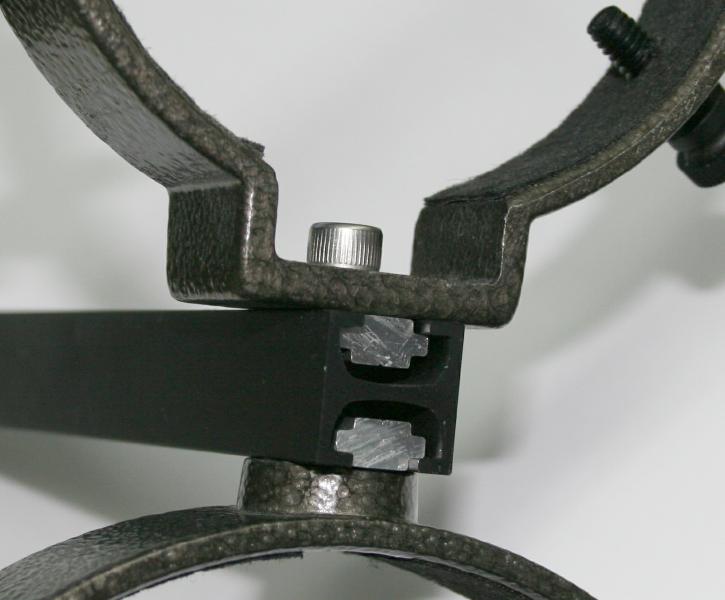

The piggyback rings mount on the top of the double sided rail and
can be adjusted to any spacing or position desired. You can also
mount our StarFinder Laser mount, Telrad base, finder scope rings
and many other accessories on the rail. The rail and piggyback items
quickly dismount as one unit. Hardware is also provided for very
stable solid mounting that requires drilling the ring holes to 1/4"
clearance.

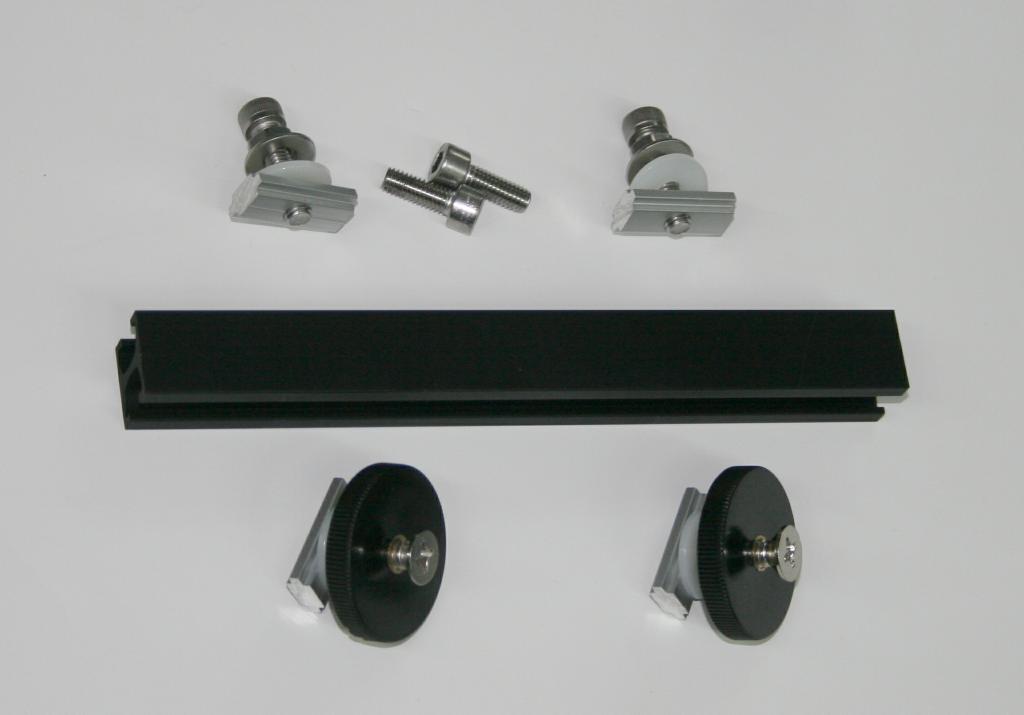

The kit contains a double sided rail (6-3/4" or 12" long) with hardware
for mounting on top of your main scope rings, as well as hardware
(M6 or 1/4-20 threads) for mounting piggyback rings on top of the rail.
The 6-3/4" rail fits ring bolt spacing up to 5-3/4", the 12" rail fits ring
bolt spacing up to 11". Rings not included, sold separately HERE!
Click on images to enlarge:
Please note: Most imported cradle rings have M6 threads on the bottom and 1/4-20 on top.
Prices include shipping in the USA!
