One Pound End Counterweights for GEM Counterweight Shafts
with Threaded Holes

These weights replace the toe-saver screw cap on your GEM mount with
a one pound weight, or 2 or 3 pounds if you stack more weights. Just a
bit more weight is often needed than is supplied with the mount.

Black powder coated steel, stainless steel threaded stud and nylon washer.
Screws into the threaded hole in the end of the counterweight shaft. Shipped
USPS Priority mail.

#EQW1 fits most imported GEM mounts from Orion, Celestron, etc, that have
a 6mm threaded hole in the end of the counterweight shaft. 6mm is about
1/4 inch diameter.

#EQW2 fits Meade LXD55/75 shafts with 8mm threaded hole in the end of the
shaft. 8mm is a bit bigger than the diameter of a wooden pencil.

#EQW3 fits Celestron CGE mount shafts with 3/8-16 threaded hole in the end
of the shaft. Beware, Celestron is now shipping some other size! More info
as we get it.

#EQW3 fits GM8 and G11 most of the time, please confirm your thread size!


Please confirm the screw size on your counterweight bar before
ordering, as there can be variations in any particular mount type!

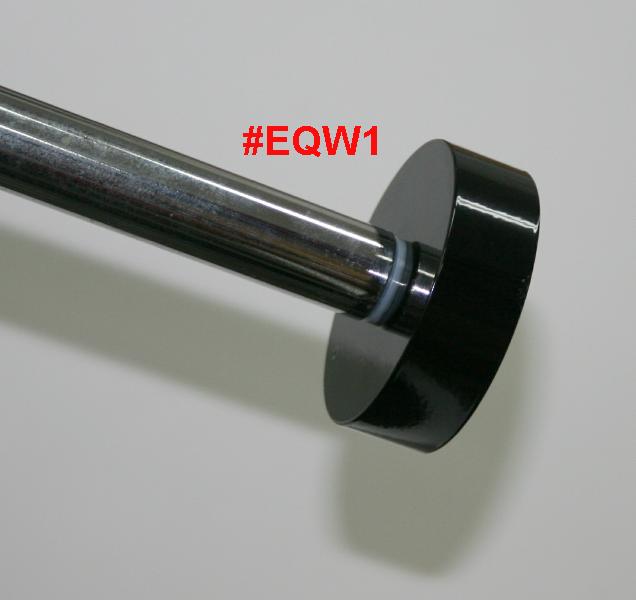

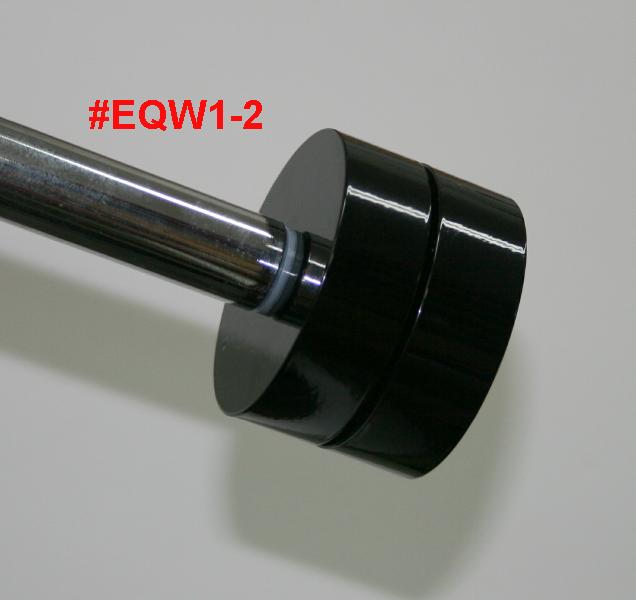

Click image to enlarge: (Counterweight shaft not included)


$35.00 each - #EQW1 - One Pound End Counterweight for GEM Counterweight Shafts with 6mm Threads
$59.00 - #EQW1-2 - Two One Pound End Counterweights for GEM Counterweight Shafts with 6mm Threads
$75.00 - #EQW1-3 - Three One Pound End Counterweights for GEM Counterweight Shafts with 6mm Threads


$35.00 each - #EQW2 - One Pound End Counterweight for GEM Counterweight Shafts with 8mm Threads - LXD55/75
$59.00 each - #EQW2-2 - Two One Pound End Counterweights for GEM Counterweight Shafts with 8mm Threads
$75.00 each - #EQW2-3 - Three One Pound End Counterweights for GEM Counterweight Shafts with 8mm Threads


$00.00 each - #EQW3 - Out of stock - One Pound End Counterweight for GEM Counterweight Shafts with 3/8-16 Threads - Celestron CGE, GM8, G11
$00.00 each - #EQW3-2 - Out of stock - Two One Pound End Counterweights for GEM Counterweight Shafts with 3/8-16 Threads
$00.00 each - #EQW3-3 - Out of stock - Three One Pound End Counterweights for GEM Counterweight Shafts with 3/8-16 Threads


$35.00 each - #EQW4 - One Pound End Counterweight for GEM Counterweight Shafts with 1/4-20 Threads
$59.00 each - #EQW4-2 - Two One Pound End Counterweights for GEM Counterweight Shafts with 1/4-20 Threads
$75.00 each - #EQW4-3 - Three One Pound End Counterweights for GEM Counterweight Shafts with 1/4-20 Threads


$00.00 each - #EQW5 - Out of Stock - One Pound End Counterweight for GEM Counterweight Shafts with M12 Threads
$00.00 each - #EQW5-2 - Out of Stock - Two One Pound End Counterweights for GEM Counterweight Shafts with M12-1.75 Threads
$00.00 each - #EQW5-3 - Out of Stock - Three One Pound End Counterweights for GEM Counterweight Shafts with M12-1.75 Threads


$35.00 each - #EQW6 - One Pound End Counterweight for GEM Counterweight Shafts with 5/16-18 Threads
$59.00 each - #EQW6-2 - Two One Pound End Counterweights for GEM Counterweight Shafts with 5/16-18 Threads


$00.00 each - #EQW7 - Out of Stock - One Pound End Counterweight for GEM Counterweight Shafts with M12-1.5 Threads
$00.00 each - #EQW7-2 - Out of Stock - Two One Pound End Counterweights for GEM Counterweight Shafts with M12-1.5 Threads


$35.00 each - #EQW8 - One Pound End Counterweight for GEM Counterweight Shafts with 1/2-13 Threads


Price includes shipping in the USA!
