Rosette Knob Bolt Kit for Meade Superwedge

The #SWK1 kit replaces all of the original allen head bolts with 10
rosette cap stainless steel bolts and SS washers, nylon washers,
and spacers that elevate the caps for easy no-tools adjustment.
Rosette caps are 1.5" diameter for firm hand tightening.

Available separately is the bolt set #SWK4, for attaching the
telescope to the wedge, and the bolt set #SWK5, for attaching the
wedge to the tripod. Both of these sets are included in #SWK1.

Additional latitude slot bolt set #SWK3 can be used at latitudes
where all four of the latitude lock bolt holes are accessible (when
the wedge is set anywhere from 30 to 55 degrees latitude).

An optional stainless steel stiffening rod #SWK2 couples the sides
of the Superwedge for vibration reduction.

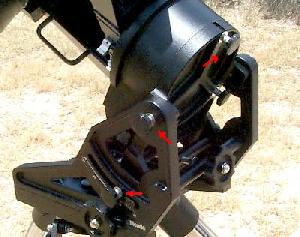

Lattitude bolts and scope base mount bolts


Tripod mounting bolts


Stiffening rod and hardware #SWK2 in Superwedge


$00.00 - #SWK1 - No Longer Available - Rosette Knob Bolt Kit for Meade Superwedge - 10 bolts, Spacers, etc
$00.00 - #SWK2 - No Longer Available - Stiffening rod with hardware for Superwedge (not for standard wedge)
$00.00 - #SWK3 - No Longer Available - Two Additional Latitude Slot Bolt Sets with Spacers, etc
$19.00 - #SWK4 - No Longer Available - Three Rosette Knob Bolts for attaching LX200 to the SuperWedge and Standard Wedge (Not for LX90)
$19.00 - #SWK5 - No Longer Available - Three Rosette Knob Tripod Bolt Sets for attaching SuperWedge and Standard Wedge to the Tripod
$7.00 - #POLY - 1/16 inch Thick White Polyethelene Sheet, 9 x 9 inches


Prices include shipping in the USA!
