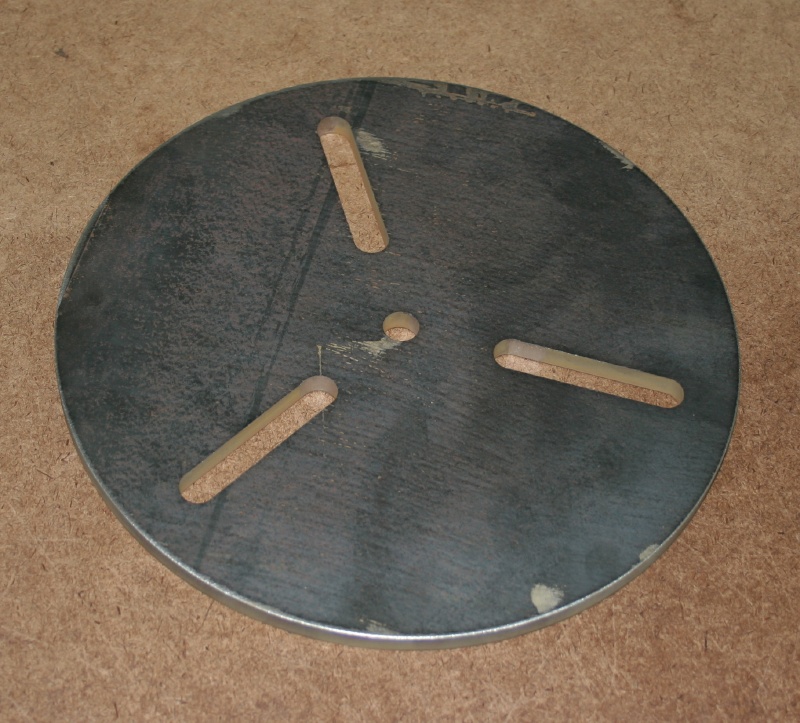

Steel Pier Top Plates, 9.625" Diameter

Water-jet cut from #836 hot rolled steel, 3/8" thick, 9.625"
diameter, with a 1/2" center hole and three 120 degree radial
slots 2.65" long. The slots can accept up to 1/2" bolts from
1.6" to 3.75" from center. Smaller bolts also work with fender
washers on the back. Weighs 7.4 lbs, watch out toes!

I made them for welding onto large diameter pipe piers, but
they can be used for bolt-up applications. Additional holes
can be drilled.

These are raw parts, cleaned and primed to prevent rust. The
water-jet cuts are clean and the edges have been de-burred.

$000.00 each includes USPS Priority mail shipping in the USA,
delivery should be 2-3 days from purchase.


Click on image to enlarge:



$000.00 - PTOP - No Longer Available - Steel Pier Top Plates, 9.625" Diameter


Price includes shipping in the USA!
