24 Volt DC Servo Motor with 500 line encoder
Prices include FREE shipping in the USA!
Ordering

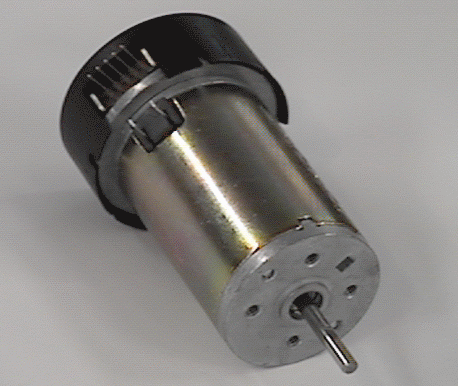

This DC servomotor is 4.1" long overall, 1.55" diameter at the
head, 2" diameter at the encoder cover. The 0.156" diameter
output shaft is 0.85" long, has a 0.5" long flat, and runs in shielded
ball bearings.
Specs:
Weight = 12.7 oz
Voltage = 24VDC
No load speed = 5984 rpm
Torque constant = 3.8 Ntm/A
Voltage constant = 4.0 mV/rpm
Speed regulation constant = 250 rpm/Ntm
Motor constant = 1.9 Ntm/SqrW
Stall torque = 24 Mtm
Stall current = 6.3 A
No load current = 0.157 A
Terminal resistance = 3.8 ohms
Terminal inductance = 2.6 mHy
Electrical time constant = 0.75 msec
Mechanical time constant = 11.5 msec
Rotor moment of inertia = 20 gcm2
Under the black cover, there is a 500 line encoder wheel
and a HP HEDS-9100 encoder. This combination yields 2000 counts
per revolution with 4X quadrature counting. The HEDS-9100 is
good for 100 Khz (12,000 rpm with the 500 line wheel - probably
beyond the top speed of the motor), has TTL outputs and runs on
5VDC, so no encoder signal conditioning board is necessary.
HEDS-9100 Data sheet is here...
The quadrature output allows precise motor speed and position control
with appropriate drive electronics, with a position accuracy approaching
1/2000th of a revolution. Even if run open loop, the encoder output can be
used for DSS or DRO display.
These are new surplus motors from a plotter manufacturer, and the cost
is much less than the price of the HEDS-9100 encoder alone!

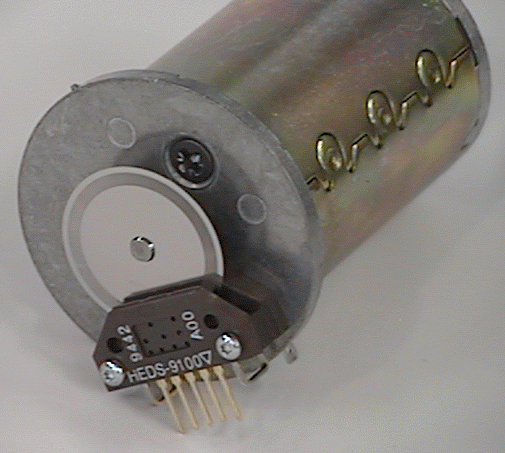

Inside...
