Dovetail Bars for CGx, EQx, Vixen, LXD55, etc GEM mounts

Black anodized aluminum dovetail bars fit the CGx and EQx series
mounts. Also fit LXD55/75, SkyView Pro, Atlas and most imported
mounts. All have 1.7" base width. Ring mounting holes take 1/4-20
or M6 hardware.

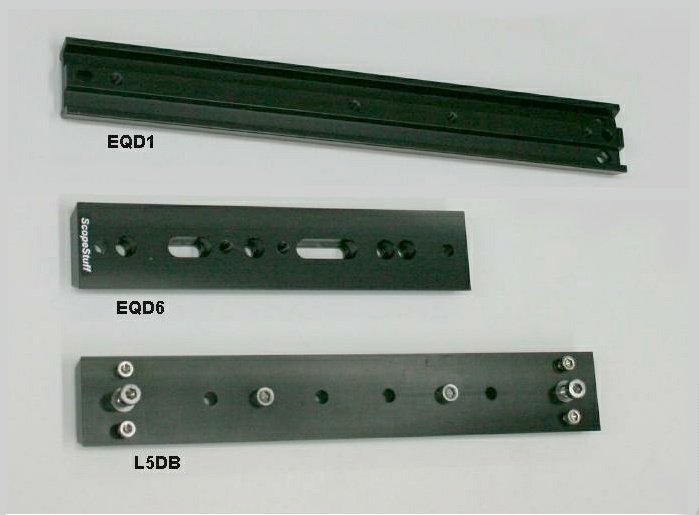

#EQD1 and #EQD2 are extruded aluminum dovetail bars, the same as
supplied with many imported mounts and scopes. Neither directly fits
C8 family scopes!

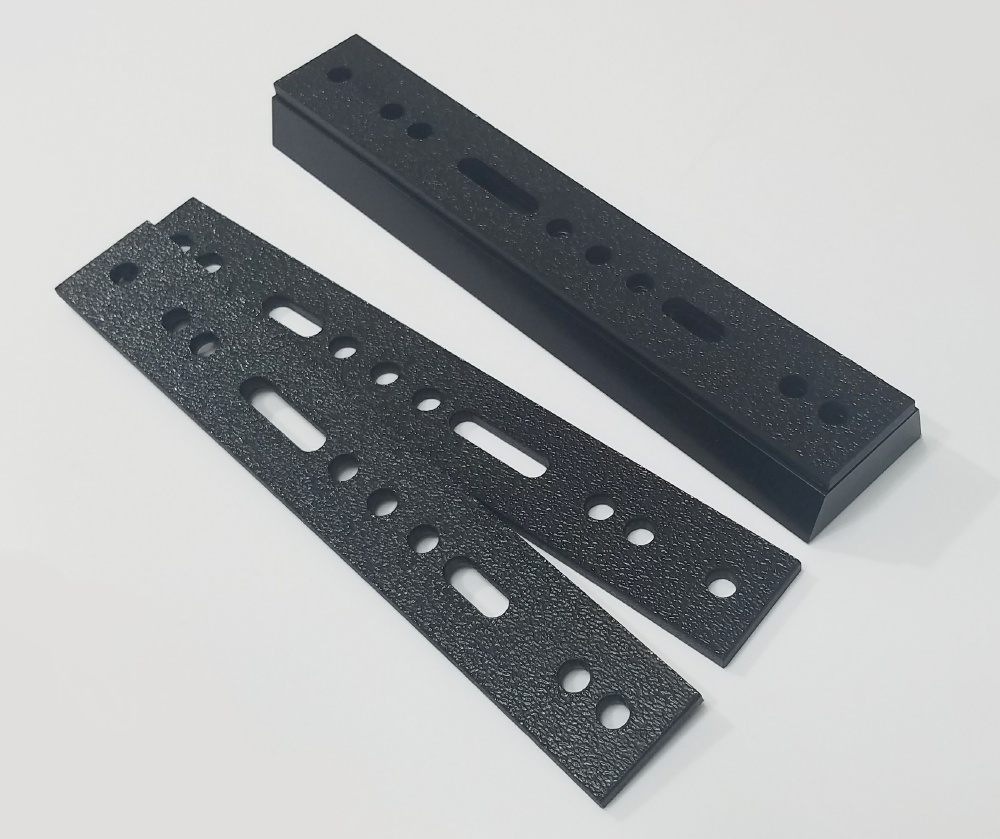

#EQD4 and #EQD6 are machined solid aluminum dovatail bars. #EQD6 is
most versatile of the two, being thicker and having counterbored holes
and slots for a variety of applications. #EQD6 weighs 0.67 lbs.

#EQD8 is a short dovetail bar, only 2.7" long, with two 1/4" mounting
holes spaced 1-1/4" apart. Hollow base provides room for bolt heads.
Ideal for mounting cameras directly to GEM mounts. 1-3/4 base width.
Cast aluminum, anodized black.

#L5DB is a machined solid aluminum replacement for the LXD55/75
factory original dovetail bar. More Information is Here

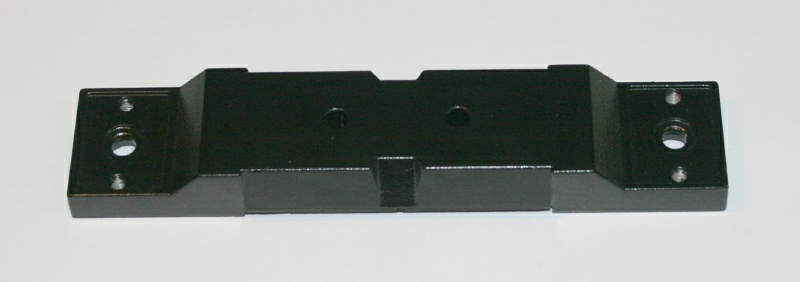

#EQBC is a cast aluminum dovetail bar for ring mounting on refractors
and small Cats. 7.5" long, 6.35" hole spacing, with threaded ring
leveling screw holes. No hardware included.


Click for larger image




Dovetail Bars for CGx, EQx, Vixen, LXD55, etc GEM mounts:

$29.00 - #EQD1 - 13" Extruded Aluminum Dovetail Bar
$00.00 - #EQD2 - No longer available - 8" Extruded Dovetail Bar
$22.00 - #EQBC - 7.5" Cast Aluminum Dovetail Bar
$00.00 - #EQD4 - No Longer Available - 8.25" Solid Aluminum Dovetail Bar 0.450" Thick
$41.00 - #EQD6 - 8.25" Solid Aluminum Dovetail Bar 0.590" Thick
$41.00 - #EQDZ - Solid Aluminum Dovetail Bar for Express, ZenithStar and Sentinal, With Hardware - More Information
$41.00 - #EQDC - Solid Aluminum Dovetail Bar for Coronado PST, With Hardware - More Information
$41.00 - #EQDE - Solid Aluminum Dovetail Bar for Orion ED-80 OTA, With Hardware
$41.00 - #EQDS - Solid Aluminum Dovetail Bar for Orion Starmax-Apex 127, With Hardware

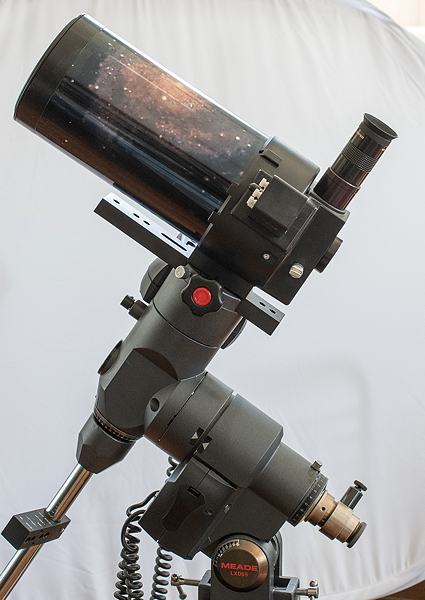

$41.00 - #EQDT - Solid Aluminum Dovetail Bar for ETX Models, With Hardware
$00.00 - #EQD8 - No Longer Available - 2.7" Short Cast Aluminum Dovetail Bar
$41.00 - #L5DB - Solid Aluminum Dovetail Bar for LXD55 and LXD75 Mount, With Hardware - More Information is Here
$47.00 - #L5DK - Solid Aluminum Dovetail Bar for LXD55 and LXD75 Mount, with Dovetail Retainer Bolt for LXD55
$47.00 - #L7DK - Solid Aluminum Dovetail Bar for LXD55 and LXD75 Mount, with Dovetail Retainer Bolt for LXD75



Prices include shipping in the USA!

Ordering Information

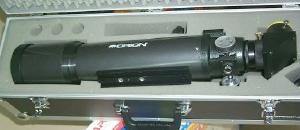

Dovetail bar on ED80 OTA
