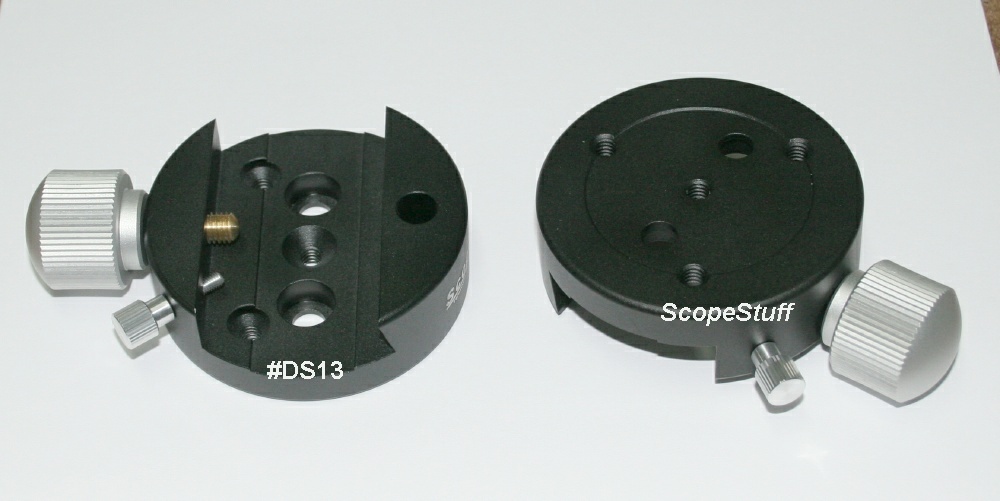

Dovetail Shoe for Orion/Synta Type Dovetails
with 1.7" Base Width

Machined aluminum, black anodized, with a round-tipped brass retainer
bolt that securely holds all dovetails with 1.7" base width. Also has
second "safety" screw. Has center 1/4-20 threaded hole, triangular
pattern of 3 1/4-20 holes on 1.06" (27mm) radius, and two 0.336"
counterbored holes for 5/16 or 8mm bolts spaced 1.38". Outside
diameter is 3.15", 1.02" thick. M8 retainer bolt. Weighs 1/2 pound.
Compatible dovetail bars sold separately Here.
Bolts to Giro III, LXD500, Takahashi Teegul Lapides.


Click images to enlarge:


$38.00 each - #DS13 - Dovetail Shoe for Orion/Synta Type Dovetails with 1.7" Base Width, Black


Prices include shipping in the USA!

Ordering Information

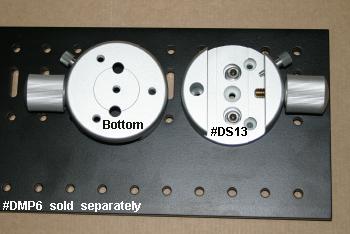

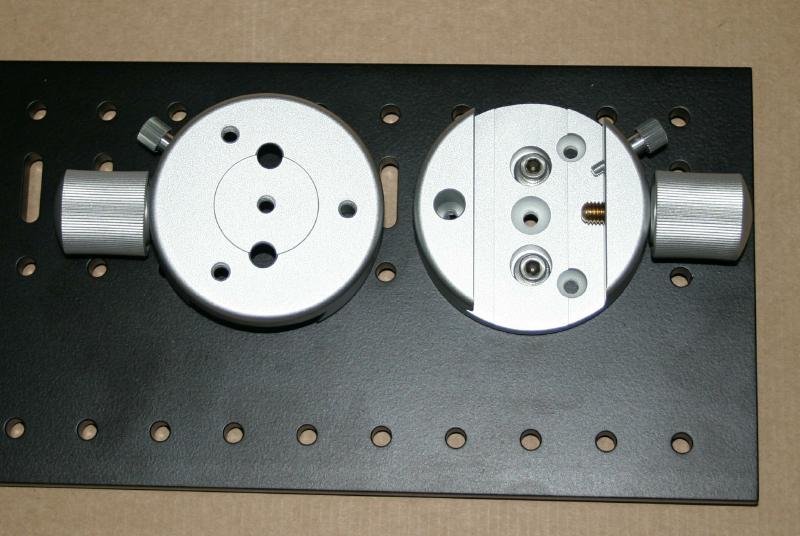

Shoes are now black, not silver as shown.

Dovetail bars sold separately Here.

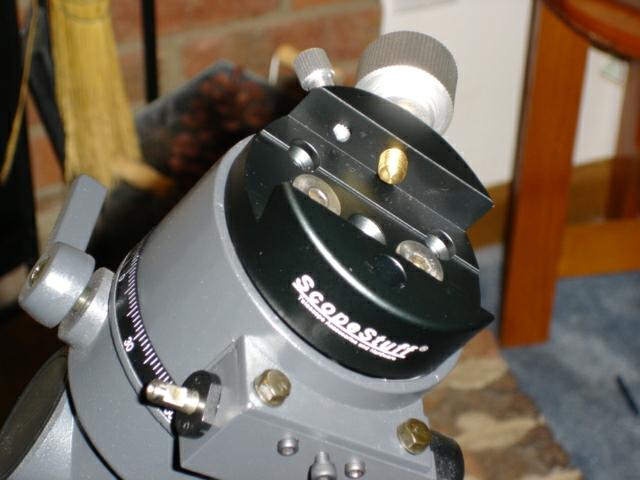

#DS13 bolts to the top of Meade LXD500 mounts. (Thanks Greg!)

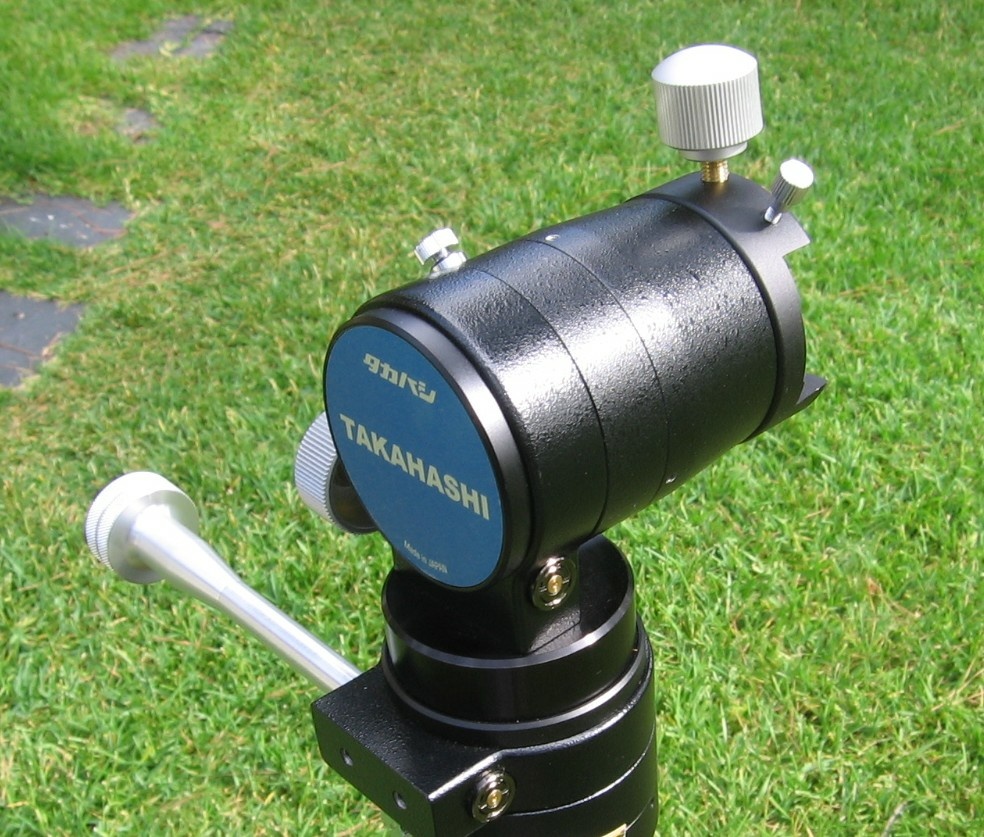

#DS13 also fits Takahashi Teegul Lapides with
two M8x20mm socket-cap bolts. (Thanks John!)
