Dual Scope Mounting Plate

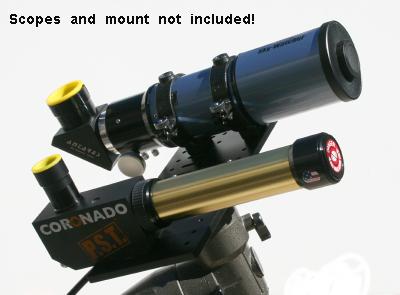

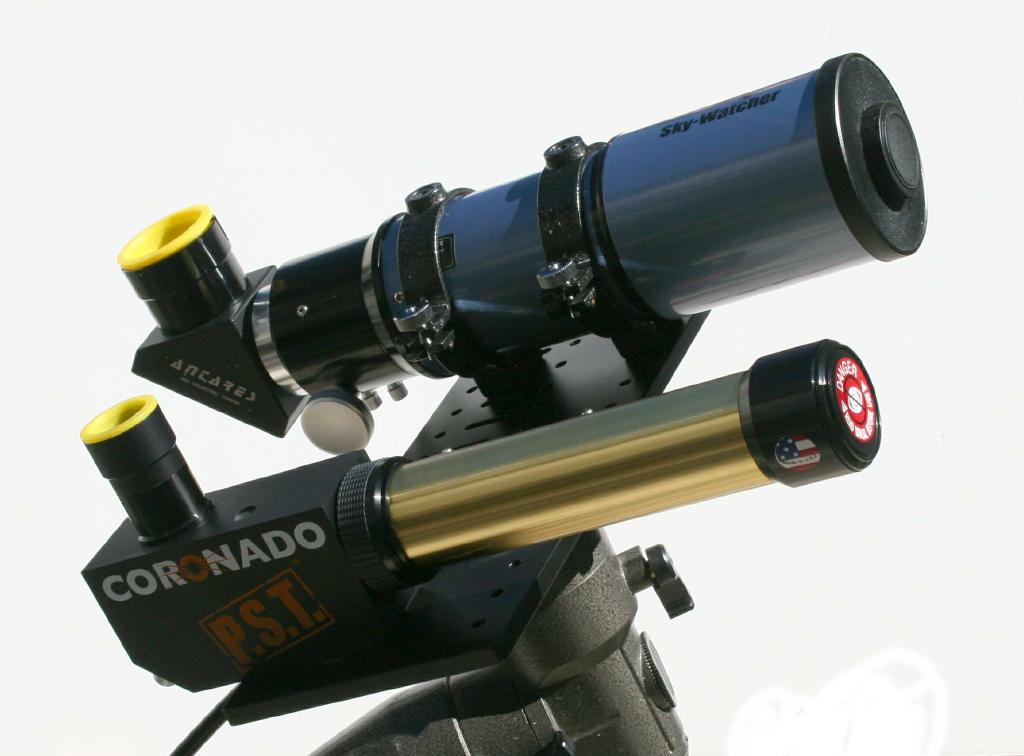

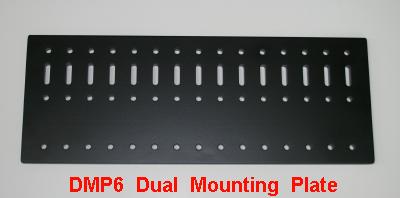

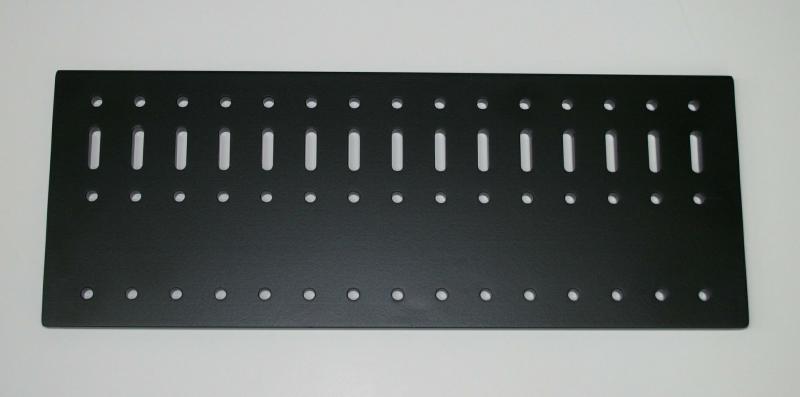

Mount two scopes side by side with this sturdy plate. Black powder coated
aluminum, 3/8" thick, 6" x 16" with hole and slot pattern repeated every inch.
All holes and slots accept 1/4 inch or 6mm bolts to allow mounting of rings
and refractor mounting feet. Plate weighs 3.3 lbs.

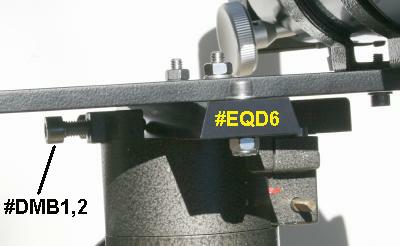

Our #EQD6 dovetail bar mates to any position on the plate to allow mounting
on CG5 type, LXD55/75, and most imported mounts. The stock dovetail retainer
bolt won't clear the mounting plate, so replacement rounded tip dovetail bolts
with allen wrenches are available below. See picture below.

Our #TVD1 Dovetail also fits the plate for mounting on G11, CI-700, CGE and
other 3" wide saddles, sold below.

#DMPK is the mounting plate and a hardware kit for many mounting configurations.

Click on images to enlarge:

$00.00 each - No Longer Available - #DMP6 - Dual Mounting Plate (Without Dovetail Bar)

$00.00 each - No Longer Available - #DMPK - Dual Mounting Plate with Hardware Kit (Without Dovetail Bar)

$55.00 each - #EQD6 - 8.25" Solid Aluminum Dovetail Bar 0.590" Thick

$6.00 each - #DMB1 - Replacement Dovetail Retainer Bolt 8mm, with Allen Wrench (CG5 type, LXD55)

$6.00 each - #DMB2 - Replacement Dovetail Retainer Bolt 10mm, with Allen Wrench (LXD75)

$49.00 each - #TVD1 - Dovetail Mounting Plate for G11, CI-700, CGE and 3" wide Saddles

Price includes shipping in the USA!
